Kedbrooke
Kedbrooke Electricals Ltd (KEL) provides customers all over the world a basket of electrical products under a trustworthy leading brand. At KEL quality is not an act but a habit.
Cable & cable accessories

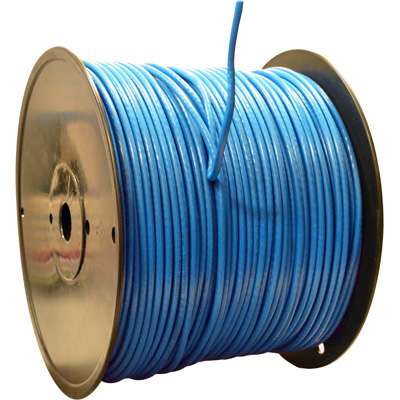

CAT6 CABLE
• Provides 250MHz standard
• Conductor Resistance at 20℃ Ω/100m - max: 9.5
• Resistance percentage - max:3.0
• Near-end crosstalk dB/ 100m min
• Meet EIA/TIA 568 B.2, EN 50173-1, ISO/IEC 11801 Standards.
• PVC jacket with HDPE insulation.
• Solid wire 24(AWG) Bare copper conductor
• Operating temparature: -20℃ to +75℃
• Return Loss (Min. at 250MHz): 18.60 dB
• Attenuation: (Min. at 250 MHz) : 30.70 dB

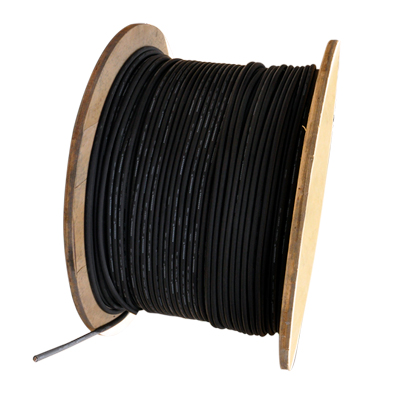

RUBBER CABLE
H07RN-F is a rubber flexible power cable specifically designed to operate in tough weather conditions and under high mechanical and thermal stresses.
The hard-wearing H07RN-F cable is made up of class 5 flexible plain copper conductors, EPR (Ethylene Propylene Rubber) insulation and a black CPE sheath.
With its oil, grease and water resistant sheath, H07RN-F cable is suitable for use in a whole range of different applications, including handling equipment, mobile power supplies and stage & audio equipment.

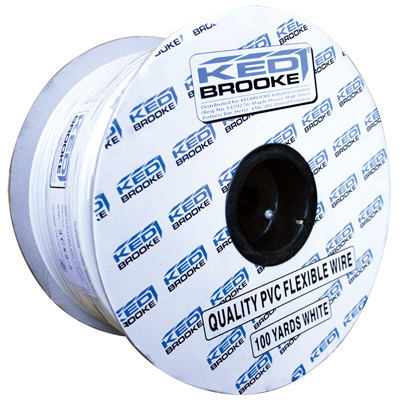

FLEXIBLE CABLES - BS6500
Flexible Cable (Cu/PVC)
Quality Flexible Wire to BS6500
Voltage: 300/500V – 100 yards
Kedbrooke flexible cable are
available in 2 core, 3 core, 4 core & 5 core
Starting from 0.5 sqmm to 16 sqmm
Available Colours: White & Black

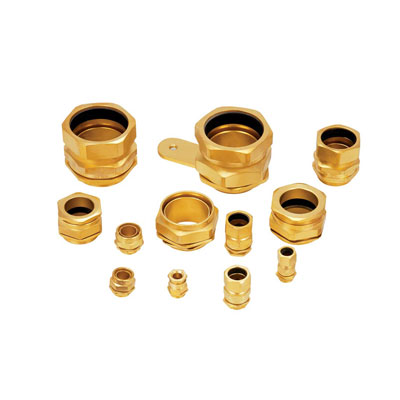

BRASS GLANDS
BW BRASS GLANDS for SWA Cable:
To BS 6121: Part 1
Suitable for single wire armoured,
plastic or rubber sheath cables.
Application: for use in a dry indoor conditions.
Low cost two part design.
Shroud may be used for additional ingress protection.
Finish: Natural Brass and also available in Electro tinned and Nickel.
Threads: Entry threads are metric to BS 3643 and are also available in Imperial (ET)
Also available in Aluminium (BS 1474) cable glands. IP54
CW Brass Glands for SWA Cable:
To BS6121: Part 1
Suitable for single wire armoured, plastic or rubber sheathed cables.
Outer seal grips sheath of cable. For use in most climatic conditions weatherproof and waterproof. Seal rated to IP66. Design has separate armour locking ring.
Gland rated to IP 66 with use of suitable sealing washer or thread sealant at gland interface. Finish: Natural Brass and also available in Electro Tinned and Nickel.

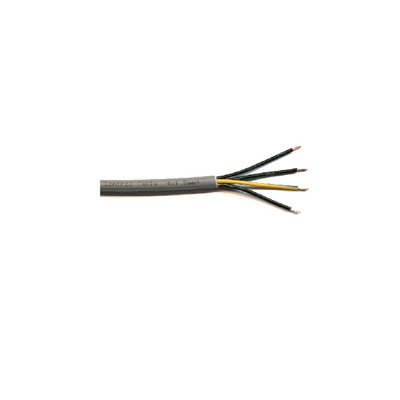

CONTROL CABLES
Kedbrooke Control cables are available in shielded and unshielded version in different sizes.
0.5 Sqmm, 0.75 Sqmm, 1 Sqmm and 1.5 Sqmm
in 3 core, 4 core, 7 core & 12 Core.

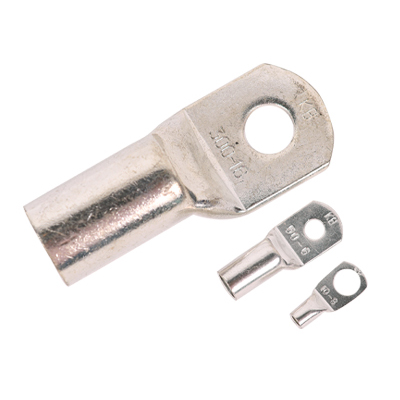

Cable Lug
Tubular cable lugs for copper conductors (Heavy duty)
Material : E – copper BS 1977
Surface: Tin plated
(with or with our inspection hole)
