Cupra
Cupra was established in the early 1990’s. The company commenced operations as a small unit manufacturing lightning protection components complying to British Standards in England. Thereafter, the Company was acquired in 2001 by LCC Group, and the group was renamed as Cupra International. The brand Cupra has gained acceptance across several continents, with specifiers increasingly confident of the capability of Cupra to deliver tailor made solutions and the highest level of service in the industry. At Cupra customer service is a way of life. Products are developed taking into account the customer requirements.
Earthing & Lightning Protection System

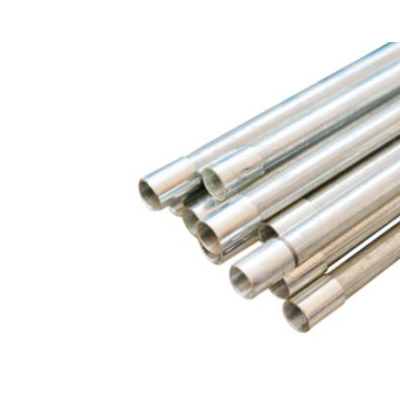

Piper Gi Rigid Conduits And Accessories
Hot Dipped Galvanized to the requirements of BSEN ISO 1461, and conforming to standards of BS EN 61386, Class 4
Comprehensive range of fittings and accessories
Boxes manufactured from Malleable Cast Iron
Smooth inner surface ensures safe pulling of wires
Clearly marked product ensures quality standards are met and maintained
Added advantage of expansion coupler as a standard product offering, which has no parallel in the market

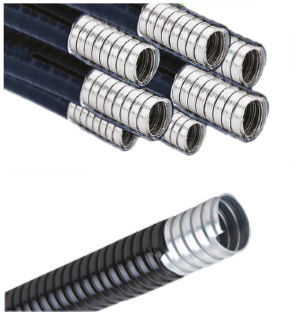

Gi Flexible Conduits And Accessories
Strong and durable clutch interlock ensures superior performance under high stress and mobility.
Intertwined fabric ensures that higher IP ratings are achieved.
BARE, PVC Quoted, Liquid Tight, LSOH GI Flexible conduits confirming to standards of BSEN 61386-23
Minimum thickness of 0.8mm PVC over sheath ensures IP rating of PVC coated flexible conduits
Minimum metal thickness of 0.5 mm enables good performance to flexibility ratio.
Nickel plated brass fittings of high quality and finish.
All accessories are embossed with product name to ensure high standards are met, and maintained.

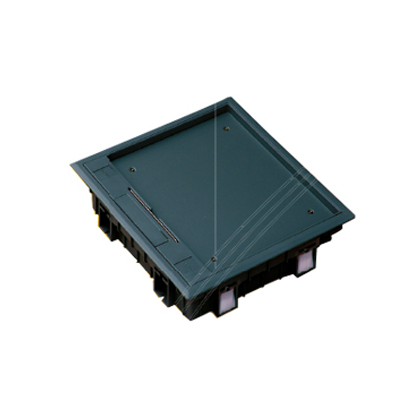

Flur Plan Floor Distribution System
IN-SCREED DUCT SYSTEMS
Three Ranges- Tetrus, Alutrim, and Deep
Robust Frame and Trap allows excellent load transfer and long life
Flexibility to relocate Trap to enable cable exit in all four directions
Recessed, captive lifting handle prevents tripping and breakage of handle
Capability to take ducts upto 40mm within a minimum screed of 80mm
Adaptable to uPVC and metal ducts
Deep range to accommodate recesses ranging from 12mm to 40mm.
Service and Junction Boxes in all versions for uniformity.
FLUSH FLOOR TRUNKING SYSTEMS
Three cover reversible design ensures stable system and easier operational access
Strong partition base and thickness ensures greater rigidity and support
High quality polymer gasket ensures superior sound deadening
Available in Tetrus and Alutrim Versions.
RAISED FLOOR TRUNKING SYSTEMS
Raised floor boxes available in Tetrus and Alutrim Versions.
Trunkings presented in epoxy coated and bare options
Open-to-air trunkings solutions available to suit options
Oscar Gi Boxes
Manufactured from pre galvanized sheet steel conforming to the standards of BS 10142
3x3 boxes have twin adjustable lugs as a standard product offering.
Recessed boxes are conforming to the standards of BS 4662.
Surface drawn boxes are conforming to the standards of BS 5733
Back boxes are manufactured from 1.2mm thick sheet steel as a standard
All boxes have a brass terminal within, that allows the boxes to be earthed if required, and can accept upto 4mm square wires.
Adaptable boxes are also available for a multitude of applications ranging from termination, re-routing, junction access and terminal provisions
American standards boxes are also available with standard knockouts

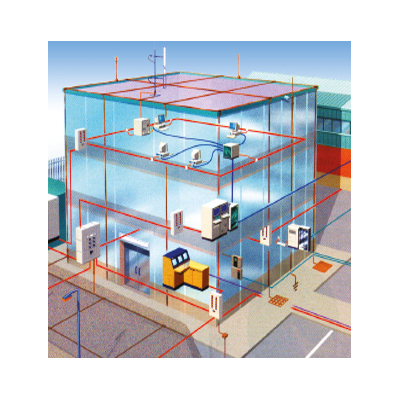

Sentri Earthing & Lightning Protection System
Conforms to the requirements of BS EN 62305
Earth Rods to 250 Micron thickness as a standard
Solid Copper Earth Rods and Stainless Steel earth rods available as standard offering
Complete range of fixings and clamps manufactured from Brass/Bronze or Gunmetal
Extremely efficient groundimprover soil that is 20 times better than Bentonite
Support in lightning protection design and development

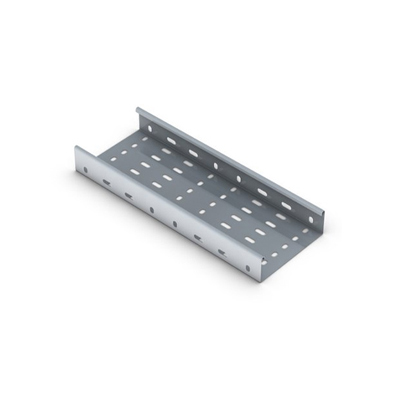

Stanchion Cable Tray & Accessories
CABLE TRAY ACCESSORIES - TRAYS, TRUNKING, LADDERS, WIRE BASKET & SUPPORTS
Epoxy coated product also available as a standard offering
Trays Hot Dipped Galvanized to the requirements of BS EN ISO 1461
Trays offered in a minimum thickness of 1.0mm to ensure prevention of warping, loss of shape
Complete and comprehensive range of accessories.
Tray accessories are folded and without welding, thereby making it strong to take high loads.
Trunking pre galvanized sheet steel to the requirements of BS EN10142:2006 and comply to the regulations of BS 50085(formerly BS 4678)
Weather Proof range of Cable trunking available as a standard offering.
Ladders offered in a minimum thickness of 1.5mm sheet steel as standard product.
Channels are manufactured to the stringent requirements of BS 6946:1988, from steel that complies to the requirements of BS 1449.
Channels are hot dip galvanized in accordance to BS EN ISO 1461.
Channels available in different thicknesses up to 3.0mm.
Download Catalogue
